SPUC::fir< Numeric > Class Template Reference

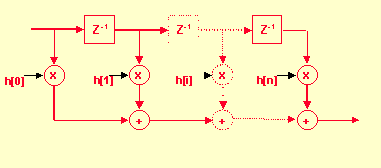

Template Class for Modeling a Finite Impulse Response filter.
Template works for double, long, complex, etc
Taps initialized to zeros. More...

#include <spuc_fir.hpp>

Public Member Functions
	~fir (void)
	Destructor. More...
	fir (void)
	Constructor. More...
	fir (int n)
	Constructor. More...
void	set_size (int n)
	Set size of Filter. More...
void	set_taps (int i, Numeric tap)
	Set tap weights - single. More...
void	set_taps (Vector< Numeric > v)
	Set tap weights - vector. More...
void	reset ()
	Reset. More...
Numeric	coeff_sum ()
	Get sum of coefficients. More...
int	get_size (void)
	Get fir size. More...
Vector< Numeric >	get_taps (void)
	Get taps as vector. More...
Vector< Numeric >	get_input (void)
	Get input as vector. More...
Numeric	out ()
	Get current output. More...
Numeric	check (int i)
	Clock in new sample & compute current output. More...
Numeric	clock (Numeric in)
	Update filter by inputting 1 sample and returning convolved output sample. More...
Numeric	update (Numeric in)
	Update filter by inputting 1 sample and returning convolved output sample. More...

Public Attributes
int	num_taps
	size of filter - public(?) More...
Numeric *	coeff
	pointer to coeff created on the heap - public(?) More...
Numeric *	z
	pointer to state created on the heap - public(?) More...
Numeric	output
	output - public(?) More...

Detailed Description

template<class Numeric>
class SPUC::fir< Numeric >

Template Class for Modeling a Finite Impulse Response filter.

Template works for double, long, complex, etc
Taps initialized to zeros.

Constructor & Destructor Documentation

template<class Numeric>

SPUC::fir< Numeric >::~fir ( void  )

inline

Destructor.

template<class Numeric>

SPUC::fir< Numeric >::fir ( void  )

inline

Constructor.

template<class Numeric>

SPUC::fir< Numeric >::fir ( int  n )

inline

Constructor.

Member Function Documentation

template<class Numeric>

Numeric SPUC::fir< Numeric >::check ( int  i )

inline

Clock in new sample & compute current output.

template<class Numeric>

Numeric SPUC::fir< Numeric >::clock ( Numeric  in )

inline

Update filter by inputting 1 sample and returning convolved output sample.

template<class Numeric>

Numeric SPUC::fir< Numeric >::coeff_sum ( )

inline

Get sum of coefficients.

template<class Numeric>

Vector<Numeric> SPUC::fir< Numeric >::get_input ( void  )

inline

Get input as vector.

template<class Numeric>

int SPUC::fir< Numeric >::get_size ( void  )

inline

Get fir size.

template<class Numeric>

Vector<Numeric> SPUC::fir< Numeric >::get_taps ( void  )

inline

Get taps as vector.

template<class Numeric>

Numeric SPUC::fir< Numeric >::out ( )

inline

Get current output.

template<class Numeric>

void SPUC::fir< Numeric >::reset ( )

inline

Reset.

template<class Numeric>

void SPUC::fir< Numeric >::set_size ( int  n )

inline

Set size of Filter.

template<class Numeric>

void SPUC::fir< Numeric >::set_taps ( int  i, Numeric  tap  )

inline

Set tap weights - single.

template<class Numeric>

void SPUC::fir< Numeric >::set_taps ( Vector< Numeric >  v )

inline

Set tap weights - vector.

template<class Numeric>

Numeric SPUC::fir< Numeric >::update ( Numeric  in )

inline

Update filter by inputting 1 sample and returning convolved output sample.

Member Data Documentation

template<class Numeric>

Numeric* SPUC::fir< Numeric >::coeff

pointer to coeff created on the heap - public(?)

template<class Numeric>

int SPUC::fir< Numeric >::num_taps

size of filter - public(?)

template<class Numeric>

Numeric SPUC::fir< Numeric >::output

output - public(?)

template<class Numeric>

Numeric* SPUC::fir< Numeric >::z

pointer to state created on the heap - public(?)

---

The documentation for this class was generated from the following file:

• C:/jobs/vcc/itpp_sci/include/sim/spuc_fir.hpp
